Multifunktionsställdon för DIN-skena (6 enheter) som erbjuder flera konfigurationer av upp till 6 slutarkanaler, upp till 12 oberoende utgångar på 16 A (kapacitiva belastningar stöds) och upp till 3 block med 2-rörs fläktkonvektorstyrning. Den tillåter manuell kontroll av sina utgångar tack vare tryckknapparna på locket. LED-indikatorer kan visa status för dess utgångar. Den innehåller 30 oberoende logiska funktioner för att öka mångsidigheten hos automatiseringarna i KNX-systemet. Den är kompatibel med KNX Secure. Tillbehör: AC/DC slutaradaptrar.

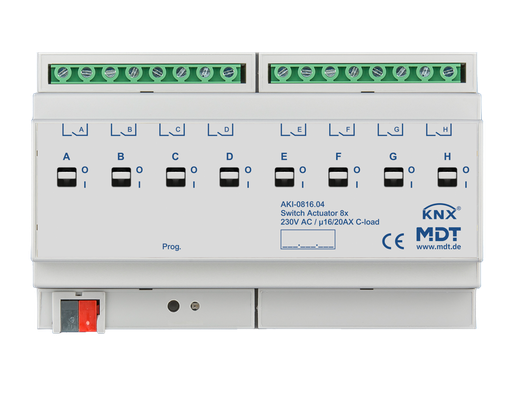

KNX Switch Actuator 8-fold, 8SU MDRC, 16/20 A, 230 V AC, C-load, industrie, 200 μF. Switch Actuator with bistable relays, for heavy C-loads. Current max. 16/20 A, capacitive load max. 200 μF. Comprehensive function extension. Mechanical manual operation for direct actuation of the relay contact, status visible. NO and NC contact operation. Time functions (switch-on/switch-off delay). Extensive staircase light and impulse functions. Extended logical and scene functions for each channel. Extended status functions (inverted, cyclic, at block). Treshold switch (Byte/2 Byte/2 Byte float). Hour meter for switching. Priority/forced operation with automatic release time. 4 mm² / 2x2,5 mm² screw terminals. Separate supply phases. Power supply via KNX bus. Quick application download (long frame support for ETS5). 3 year warranty.

PowerBlock io64 - KNX kopplingsställdon med 4 utgångar och 6 ingångar. Ingångarna kan konfigureras i ETS som binära ingångar eller som analoga ingångar. Detta innebär att även analoga temperaturgivare kan utvärderas. Ställdonet har 4 utgångar. Varje utgång har en maximal belastning på 16 A och klarar kapacitiva belastningar (<140 µF). Varje kontakt kan manövreras manuellt via knappar med kvittering. ETS-applikationsprogrammet möjliggör många funktioner. Till exempel kan 2 utgångar konfigureras som en slutarkanal. 4 st plasthus för DIN-skena montering..

KNX Binary Input 16-fold, 8SU MDRC, Inputs 24 V AC/DC. KNX Binary Input detection of 12-24 V AC/DC signals. LED indicator for each channel, max. input cable length 100 m. To connect Push Buttons or window/auxiliary contacts. New multi touch function, sends up to 4 values/DPTs on the same or different objects. Innovative group control with long/extra long button press. 4 integrated logical modules, e.g. interpretation of the inputs. (e.g. window closed or sending second object). NO or NC contact operation, sending contact status. Operation of blinds and shutters, 1 and 2 button operation. Forced setting function for each output. Scenes, block communication object for each channel. Operation with short/long button push and 2 objects. Counting of pulses, suitable for 30 ms S0 pulses. Cyclical sending, sending after reset. 3 year warranty.

KNX Binary Input 16-fold, 8SU MDRC, Inputs 230 V AC. KNX Binary Input detection of 230 V AC signals. LED indicator for each channel, max. input cable length 100 m. To connect Push Buttons or window/auxiliary contacts. New multi touch function, sends up to 4 values/DPTs on the same or different objects. Innovative group control with long/extra long button press. 4 integrated logical modules, e.g. interpretation of the inputs. (e.g. window closed or sending second object). NO or NC contact operation, sending contact status. Operation of blinds and shutters, 1 and 2 button operation. Forced setting function for each output. Scenes, block communication object for each channel. Operation with short/long button push and 2 objects. Counting of pulses, suitable for 30 ms S0 pulses. Cyclical sending, sending after reset. 3 year warranty.

KNX Binary Input 16-fold, 8SU MDRC, Contact Inputs. KNX Binary Input to connect potential free contacts. LED indicator for each channel, max. input cable length 100 m. To connect Push Buttons or window/auxiliary contacts. New multi touch function, sends up to 4 values/DPTs on the same or different objects. Innovative group control with long/extra long button press. 4 integrated logical modules, e.g. interpretation of the inputs. (e.g. window closed or sending second object). NO or NC contact operation, sending contact status. Operation of blinds and shutters, 1 and 2 button operation. Forced setting function for each output. Scenes, block communication object for each channel. Operation with short/long button push and 2 objects. Counting of pulses, suitable for 30 ms S0 pulses. Cyclical sending, sending after reset. Internally generated query voltage of 12 V. 3 year warranty.

PowerBlock o8 - KNX ställdon med 8 binära utgångar. Varje utgång har en maximal belastning på 16 A och klarar kapacitiva belastningar (<140 µF). Kontakterna kan manövreras manuellt med tryckknappar med återkoppling. ETS-applikationsprogrammet möjliggör många funktioner. Till exempel kan varje kanal konfigureras som en slutarkanal. 4 st plasthus för DIN-skena montering..

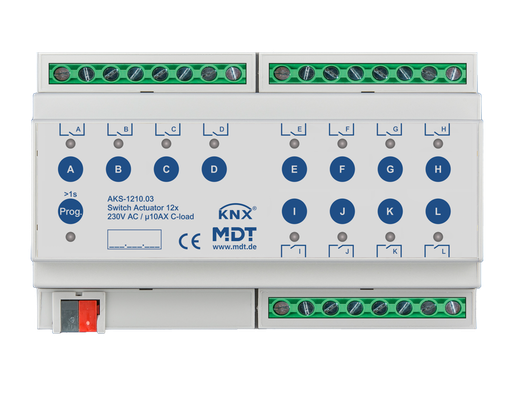

KNX Switch Actuator 12-fold, 8SU MDRC, 10 A, 230 V AC, C-load, standard, 140 μF. Switch Actuator with bistable relays. Current max. 10 A, capacitive load max. 140 μF. Space saving design. Comprehensive function extension. Lockable manual operation and LED indicator for each channel. NO and NC contact operation. Status response at manually operation. Time functions (switch-on/-off delay, staircase light functions). Extended logical and scene functions for each channel. Extended status functions (inverted, cyclic, at block). Treshold switch (Byte/2 Byte/2 Byte float). Hour meter for switching. Priority/forced operation with automatic release time. Separate power supply terminals for each channel. Power supply via KNX bus. Quick application download (long frame support for ETS5). 3 year warranty.

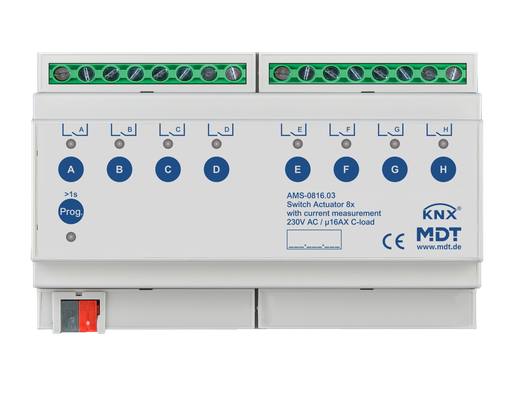

KNX Switch Actuator 8-fold, 8SU MDRC, 16 A, 230 V AC, C-load, standard, 140 μF, current measurement. Standard version with bistable relays.
Comprehensive application. Integrated True RMS current measurement. Current measurement range 10 mA to 16 A. Integrated energy consumption meter function (Wh/kWh). Fast reaction <1s at Master/Slave operation. Push Button for manual operation and LED indicator for each channel. Time functions (switch-on/switch-off delay, staircase light function). Threshold switch function and Consumption threshold value. Logical linking of binary data, 8 scenes per channel. Operating hours meter. Extended status functions (inverted, cyclic, when locked). Priority / forced operation with automatic release time. Adjustable behaviour on bus voltage failure / -return. All L-connections separated, 4 mm² / 2 x 2,5 mm² connection terminals. 3 year warranty.

Universellt dimmanöverdon (RLC, LED, CFL*) för DIN-skena (8 enheter) med 4 kanaler för upp till 300 W vid 230 VAC (200 W vid 110 VAC). Den tillåter dubbelkanalsanslutning, upp till 600 W vid 230 VAC (400 W vid 110 VAC) och fyrkanalsanslutning för att styra upp till 1200 W vid 230 VAC (800 W vid 110 VAC). Automatisk detektering av belastningstyp (RLC). Konfigurerbara dimkurvor för LED och CFL. Den tillåter manuell kontroll av dess utgångar genom tryckknapparna på locket. Den innehåller 10 oberoende logiska funktioner. Feldetektering: kortslutning, spänningsstöt, överhettning, onormal frekvens, ström. * Endast dimbara laster.

DALI Control 64 Gateway, 4SU MDRC. The gateway is DALI-2 certified. With dimmable colour adjustment by HSV control. Individual control of up to 64 ECGs / 16 DALI groups. Supports DALI and DALI-2 standard, as well as DALI ECG DT6 / DT8. Innovative HSV color control, RGB, RGBW and XY colour according to DALI DT8 standard. Tunable White, color temperature control. Integrated colour control module for time dependent controlling of the luminous colour in up to 300 steps. Operation modes like normal operation, continuous operation, night operation, stairwell and panic operation, Manual operation. 16 scenes with individual dimming times. Energy saving function for switching off the ECGs in the DALI groups (via additional KNX switch actuator). Fault detection of lamp faults and faulty ECGs. Quick exchange of ECG. Free DCA app for commissioning the DALI bus system and configuration of the scenes and time control. Commissioning with ETS5. 3 year warranty.

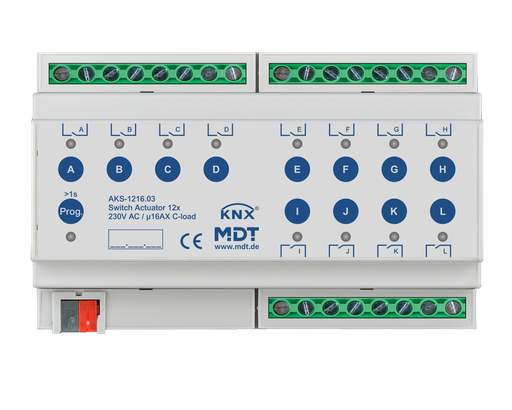

KNX Switch Actuator 12-fold, 8SU MDRC, 16 A, 230 V AC, C-load, standard, 140 μF. Switch Actuator with bistable relays. Current max. 16 A, capacitive load max. 140 μF. Space saving design. Comprehensive function extension. Lockable manual operation and LED indicator for each channel. NO and NC contact operation. Status response at manually operation. Time functions (switch-on/-off delay, staircase light functions). Extended logical and scene functions for each channel. Extended status functions (inverted, cyclic, at block). Treshold switch (Byte/2 Byte/2 Byte float). Hour meter for switching. Priority/forced operation with automatic release time. Separate power supply terminals for each channel. Power supply via KNX bus. Quick application download (long frame support for ETS5). 3 year warranty.

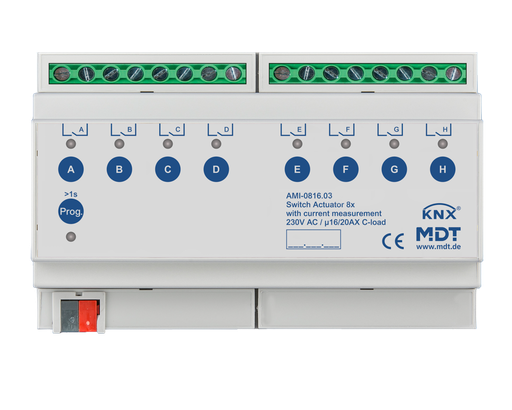

KNX Switch Actuator 8-fold, 8SU MDRC, 16/20 A, 230 V AC, C-load, industrie, 200 μF, current measurement. Industrial version with bistable relays.
Comprehensive application. Integrated True RMS current measurement. Current measurement range 10 mA to 20 A. Integrated energy consumption meter function (Wh/kWh). Fast reaction <1s at Master/Slave operation. Push Button for manual operation and LED indicator for each channel. Time functions (switch-on/switch-off delay, staircase light function). Threshold switch function and Consumption threshold value. Logical linking of binary data, 8 scenes per channel. Operating hours meter. Extended status functions (inverted, cyclic, when locked). Priority / forced operation with automatic release time. Adjustable behaviour on bus voltage failure / -return. All L-connections separated, 4 mm² / 2 x 2,5 mm² connection terminals. 3 year warranty.

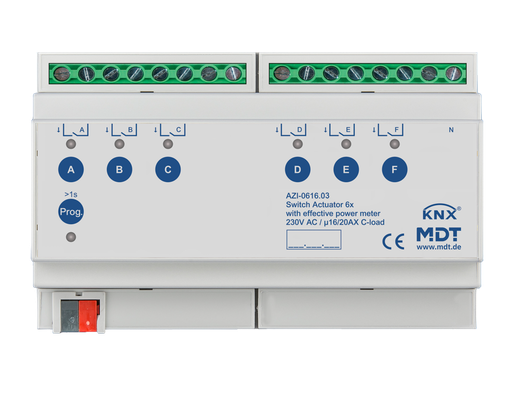

KNX Switch Actuator 6-fold, 8SU, MDRC, 16/20 A, 230 V AC, C-load, 200 µF, power measurement. Industrial version with bistable relays.
Comprehensive application. Integrated True RMS current measurement and voltage measurement. True active power meter (Wh / kWh). Current measurement range 10 mA to 20 A. Active power-, reactive power-, current- and voltage values. Push Button for manual operation and LED indicator for each channel. Time functions (switch-on/switch-off delay, staircase light function). Threshold switch function and Consumption threshold value. Priority / forced operation with automatic release time. Logical linking of binary data, 8 scenes per channel. Operating hours meter. Extended status functions (inverted, cyclic, when locked). Adjustable behaviour on bus voltage failure / -return. All L-connections separated, 4 mm² / 2 x 2,5 mm² connection terminals. 3 year warranty.

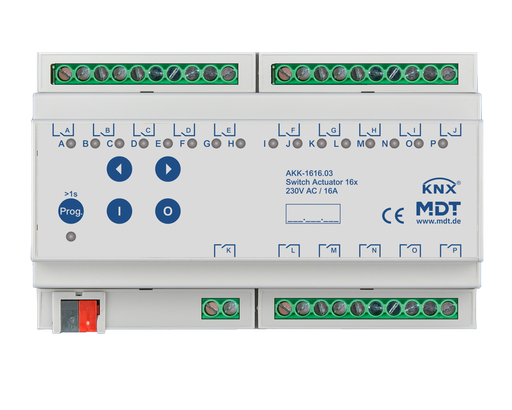

KNX Switch Actuator 16-fold, 8SU MDRC, 16 A, 230 V AC, compact, 70 µF, 10 ECG. Compact Switch Actuator with bistable relays. Current max. 16 A with ohmic load, 70 μF / 10 ECG. Function extension. Lockable manual operation and LED indicator for each channel. NO and NC contact operation. Status response at manually operation. Time functions (switch-on/switch-off delay). Extensive staircase light and impulse functions. Status response (active/passive) for each channel. Logical linking of binary data. Extendend scene functions for each channel. Central switching functions and block functions. Adjustable behavior in case of bus voltage failure/return. Separate L-connections. Power supply via KNX bus. Quick application download (long frame support for ETS5). 3 year warranty.

4-kanals KNX ställdon för DALI ljusstyrning (KNX DALI gateway) med sändningsdrift. Omkopplingsrelä för att undvika standby. Avstämbar vit, RGB och HSV-kontroll. Ställdonet KNX DALI L4 bc 16 A är ett gränssnitt mellan KNX bussystem och DALI belysningssystem (Digital Addressable Lighting Interface). Gränssnittet har fyra kanaler för DALI-ljusstyrning, som var och en kan styra upp till 64 DALI-enheter (elektroniska förkopplingsdon). Styrningen sker via broadcast meddelande, dvs alla deltagare på en kanal växlas/dämpas samtidigt. Varje kanal kan ställas in separat. Varje kanal har en omkopplad reläkontakt genom vilken DALI-enheterna kan kopplas om helt strömlösa (ingen standby). KNX DALI L4 bc 16 A försörjer DALI-bussspänningen, ingen extern DALI-bussspänning krävs. Med KNX DALI L4 bc 16 A kan färg och färgtemperatur (Tunable White) ställas in för DALI EVG med enhetstyp 8. Båda färginställningarna kan styras av scener, relativ eller absolut dimning. Utöver normal drift har KNX DALI L4 bc 16 A nattläge och trappbelysningsfunktion med förvarningsfunktion (och båda i kombination). Knappar på enheten tillåter direkt manuell omkoppling och dimning av anslutna DALI EVG även utan bussspänning. Lysdioderna indikerar om reläet är öppet eller stängt (övre lysdioder) och om lampan är på eller av efter ett DALI-kommando (nedre lysdioder). DALI EVG kan styras av ETS med knapparna för idrifttagning på plats utan KNX strömförsörjning och utan föregående konfiguration.

Multifunktionsställdon för DIN-skena (8 enheter) med 16 utgångar (16 A C-Load) som erbjuder flera konfigurationer som slutarkanaler, som individuella utgångar eller som block av 2-rörs fläktkonvektorstyrning. Den tillåter manuell kontroll av dess utgångar genom tryckknapparna på locket. Den innehåller 20 oberoende logiska funktioner. Den är kompatibel med KNX Secure. Tillbehör: AC/DC slutaradaptrar.

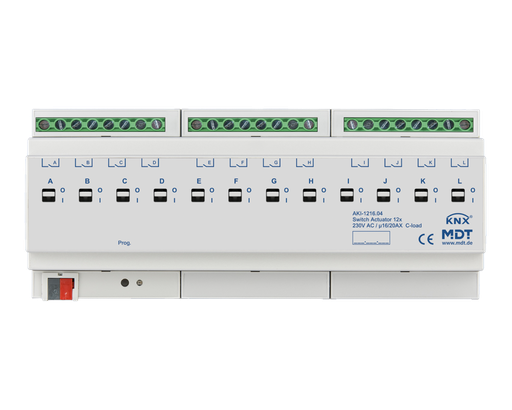

KNX Switch Actuator 12-fold, 12SU MDRC, 16/20 A, 230 V AC, C-load, industrie, 200 μF. Switch Actuator with bistable relays, for heavy C-loads. Current max. 16/20 A, capacitive load max. 200 μF. Comprehensive function extension. Mechanical manual operation for direct actuation of the relay contact, status visible. NO and NC contact operation. Time functions (switch-on/switch-off delay). Extensive staircase light and impulse functions. Extended logical and scene functions for each channel. Extended status functions (inverted, cyclic, at block). Treshold switch (Byte/2 Byte/2 Byte float). Hour meter for switching. Priority/forced operation with automatic release time. 4 mm² / 2x2,5 mm² screw terminals. Separate supply phases. Power supply via KNX bus. Quick application download (long frame support for ETS5). 3 year warranty.

KNX Dimming Actuator 4-fold, 6SU MDRC, 250 W, 230 V AC, with active power measurement. Dimming Actuator 4-fold, 6SU MDRC, 250 W, 230 V AC with active power measurement, for switching and dimming. Nominal power output 4 x 250 W, 1 x 500 W + 2 x 250 W or 2 x 500 W. Optimized for dimmable LED lights > 2 W. For HV- Halogen lights and NV- Halogen lights with transformer/EVG. Operation in leading-edge or trailing-edge selectable. Active power measurement. Integrated diagnostic function with plain text message. Overcurrent-/short circuit- and temperature protection with message. Time functions (switch-on/switch-off delay, staircase light function). Automatic time dependent dimming. Softstart, global and individual dimming speed. Day/Night function. Parallel operation of 2 channels with 500 W total power output. Push Button and LED indicator for each channel. Separate L-/N connections for each channel (different phases possible L1, L2, L3). 3 year warranty.
