KNX Switch Actuator 16-fold, 8SU MDRC, 16 A, 230 V AC, C-load, standard, 140 µF. Switch Actuator with bistable relays. Current max. 16 A, capacitive load max. 140 μF. Space saving design. Saves up to 30% space. Comprehensive function extension. Lockable manual operation and LED indicator for each channel. NO and NC contact operation. Status response at manually operation. Time functions (switch-on/-off delay, staircase light functions). Extended logical and scene functions for each channel. Extended status functions (inverted, cyclic, at block). Treshold switch (Byte/2 Byte/2 Byte float). Hour meter for switching. Priority/forced operation with automatic release time. Separate power supply terminals for each channel. Power supply via KNX bus. Quick application download (long frame support for ETS5). 3 year warranty.

KNX Switch Actuator 12-fold, 12SU MDRC, 16/20 A, 230 V AC, C-load, industrie, 200 μF, current measurement. Industrial version with bistable relays.
Comprehensive application. Integrated True RMS current measurement. Current measurement range 10 mA to 20 A. Integrated energy consumption meter function (Wh/kWh). Fast reaction <1s at Master/Slave operation. Push Button for manual operation and LED indicator for each channel. Time functions (switch-on/switch-off delay, staircase light function). Threshold switch function and Consumption threshold value. Logical linking of binary data, 8 scenes per channel. Operating hours meter. Extended status functions (inverted, cyclic, when locked). Priority / forced operation with automatic release time. Adjustable behaviour on bus voltage failure / -return. All L-connections separated, 4 mm² / 2 x 2,5 mm² connection terminals. 3 year warranty.

PowerBlock o16 - KNX ställdon med 16 binära utgångar. Varje utgång har en maximal belastning på 16 A och klarar kapacitiva belastningar (<140 µF). Kontakterna kan manövreras manuellt med tryckknappar med återkoppling. ETS-applikationsprogrammet möjliggör många funktioner. Till exempel kan varje kanal konfigureras som en slutarkanal. 8 st plasthus för DIN-skena montering..

PowerBlock o16 Multi - KNX ställdon med 16 binära utgångar. Varje utgång har en maximal belastning på 16 A och klarar kapacitiva belastningar (<140 µF). Kontakterna kan manövreras manuellt med tryckknappar med återkoppling. ETS-applikationsprogrammet möjliggör många funktioner: 16 x binära utgångar för omkoppling 8 x slutare 4 x fläktkonvektor (3 nivåer för fläktkonvektor, 1 utgång för ventil) komplex logik-, scen-, tröskel- och timer-modul 8 enheter plasthölje för DIN-skena montering..

KNX Switch Actuator 24-fold, 12SU MDRC, 16 A, 230 V AC, compact, 70 µF, 10 ECG. Compact Switch Actuator with bistable relays
Current max. 16 A with ohmic load, 70 μF / 10 ECG. Function extension. Lockable manual operation and LED indicator for each channel. NO and NC contact operation. Status response at manually operation. Time functions (switch-on/switch-off delay). Extensive staircase light and impulse functions. Status response (active/passive) for each channel. Logical linking of binary data. Extendend scene functions for each channel. Central switching functions and block functions. Adjustable behavior in case of bus voltage failure/return. 4 mm² / 2x2,5 mm² screw terminals. Separate supply phases. Power supply via KNX bus. Quick application download (long frame support for ETS5). 3 year warranty.

Multifunktionsställdon för DIN-skena (12 enheter) som erbjuder flera konfigurationer av upp till 12 slutarkanaler, upp till 24 oberoende utgångar på 16 A (kapacitiva belastningar stöds) och upp till 6 block med 2-rörs fläktkonvektorstyrning. Den tillåter manuell kontroll av sina utgångar tack vare tryckknapparna på locket. LED-indikatorer kan visa status för dess utgångar. Den innehåller 30 oberoende logiska funktioner för att öka mångsidigheten hos automatiseringarna i KNX-systemet. Tillbehör: AC/DC slutaradaptrar.

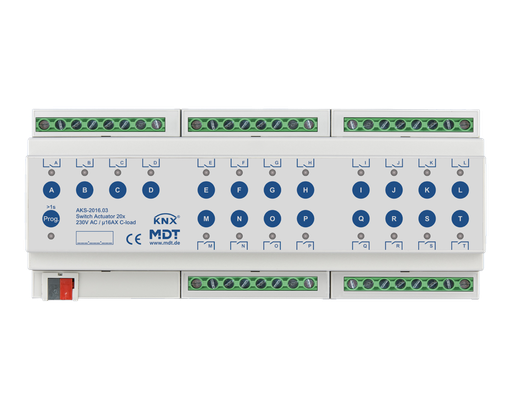

KNX Switch Actuator 20-fold, 12SU MDRC, 16 A, 230 V AC, C-load, standard, 140 μF. Switch Actuator with bistable relays. Current max. 16 A, capacitive load max. 140 μF. Space saving design. Saves up to 30% space. Comprehensive function extension. Lockable manual operation and LED indicator for each channel. NO and NC contact operation. Status response at manually operation. Time functions (switch-on/-off delay, staircase light functions). Extended logical and scene functions for each channel. Extended status functions (inverted, cyclic, at block). Treshold switch (Byte/2 Byte/2 Byte float). Hour meter for switching. Priority/forced operation with automatic release time. Separate power supply terminals for each channel. Power supply via KNX bus. Quick application download (long frame support for ETS5). 3 year warranty.

KNX Universal Actuator 24-fold, 12SU MDRC, 16 A, 230 V AC, 100 μF, 15 ECG. Compact design with bistable relays. Current max. 16 A with ohmic load, 100 μF / 15 ECG. With sun position calculation / shading. Comprehensive function extension. Can be used as Switch Actuator (max. 24-fold) or Shutter Actuator (max. 12-fold). Mixed applications of Switch- and Shutter Actuator possible. Heating control with PWM 0-100 %. Push Button and LED indicator for each channel. Practical ventilation function (window open/tilted). Automatic shading / slat tracking with sun position calculation. Time functions (switch-on/-off delay, staircase light function). Status response (active/passive) for each channel. Logical linking of binary data, 8 scenes per channel. Central switching functions and block functions. Operation mode blind/shutter adjustable. Running, pause and step time freely adjustable. Adjustable behavior in case of bus voltage failure/return. 4 mm² / 2x2,5 mm² connection terminals. Separate L-connections. 3 year warranty.

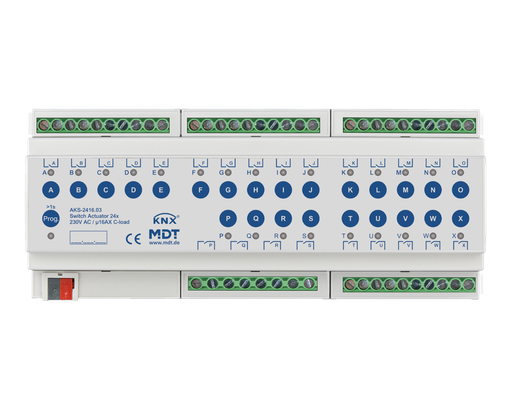

KNX Switch Actuator 24-fold, 12SU MDRC, 16 A, 230 V AC, C-load, standard, 140 μF. Switch Actuator with bistable relays. Current max. 16 A, capacitive load max. 140 μF. Space saving design. Saves up to 30% space. Comprehensive function extension. Lockable manual operation and LED indicator for each channel. NO and NC contact operation. Status response at manually operation. Time functions (switch-on/-off delay, staircase light functions). Extended logical and scene functions for each channel. Extended status functions (inverted, cyclic, at block). Treshold switch (Byte/2 Byte/2 Byte float). Hour meter for switching. Priority/forced operation with automatic release time. Separate power supply terminals for each channel. Power supply via KNX bus. Quick application download (long frame support for ETS5). 3 year warranty.

Utgångspunkten för de flesta projekt som innehåller kontroll- och övervakningsfunktioner. Multifunktionsenhet som integrerar en 640 mA KNX-strömförsörjning, KNX-IP-gränssnitt, 4 oberoende termostater, logisk modul, 12 analoga/digitala ingångar och 16 reläutgångar (16 A C-Load) i endast 12 DIN-skenenheter. Erbjuder flera konfigurationsalternativ som individuella utgångar, slutarkanaler eller fläktkonvektor (2/4-rör).
