KNX Room Temperature Controller Smart 55, White glossy finish. With colour display, temperature/humidy sensor and 4 inputs. Flush mounted. Integrated BCU. Fits 55 mm systems/ranges: - GIRA Standard 55, E2,E22, Event, Esprit. - BERKER S1, B3, B7. - JUNG A500, Aplus, Acreation, AS500. - MERTEN 1M, M-Smart, M-Plan, M-Pure. Active colour display to indicate function and status. Background colour w/b and display brightness adjustable. Display of set and actual temperature. For indoor temperature controlling Range -10 to +50 °C. Selectable temperature controller (PI, Two-position, PWM). Simple setpoint adjustment via separate +/- buttons. 1 Bit +/-, 1 Byte oder 2 Byte absolute object for setpoint adjustment. Setpoint values are stored at bus voltage failure. Limit values min/max, frost protection alarm, min/max memory. Operation mode can be set via Bit/Byte objects. Temperature and humidy sensor with dew point calculation. Message when leaving the comfort zone. 4 binary inputs to connect potential free contacs (Push Buttons or window/auxiliary contacts). Ventilation control by hand or automatic operation. 14 Byte object for plain text diagnostic. Installation in a installation box with included support ring. Recommended installation height: 1,60 m. Integrated bus coupling unit. 3 year warranty.

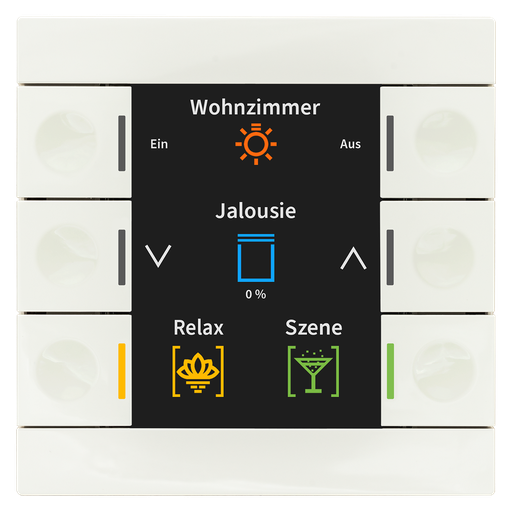

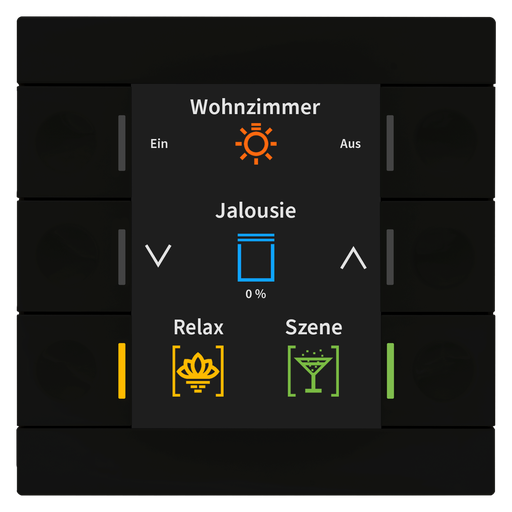

KNX Push Button Smart 86 with colour display, Plastic, White glossy finish. With 6 buttons, coloured display and RGB status indicator. Usable as 4/6/8/12-fold Push Button. Integrated BCU. New functions Series 02: Innovative group control with long/extra long operation / Keystroke. New mapping function for convenient function allocation. Extended info display with up to 3 lines and up to 6 measured values. Modern Icons (Icon upload) Slap function with new range of functions. General functions: Large, coloured active display to indicate function and status. Adjustable background colour of the display (white or black). Symbols and plain text adjustable for each button/function. 6 mechanical buttons with finger recess. Up to 12 functions on 2 or 3 levels (2x6 or 3x4 functions). Up to 6 functions without level switching. The buttons can be programmed for 1 or 2 button operation. 1 or 2 button operation for switching, dimming, shutters, values. Short/long button push with 2 objects. RGB status for each button separate controlable from each level. Visualisation of inside/outside temperature and time. Automatic display brightness via light sensor and day/night object. Slap function with additional switch channel. Installation without frame in a Installation box. Dimensions (W x H): 86 mm x 86 mm. Recommended installation height: 1,10 - 1,25 m (as Push Button). No additional power supply required. Integrated bus coupling unit. 3 year warranty.

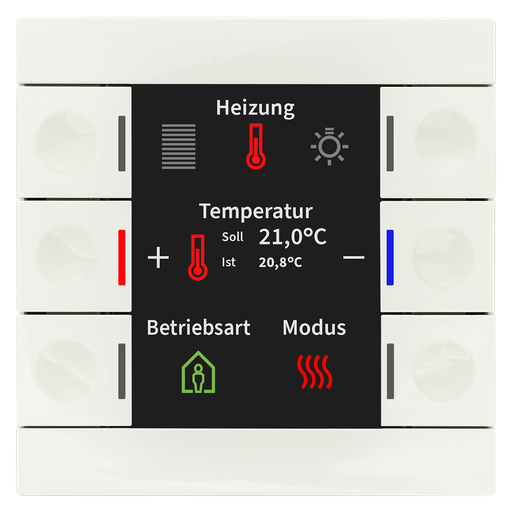

KNX Push Button Smart 86 with colour display and temperature sensor, White glossy finish. With 6 buttons, coloured display and RGB status indicator. Usable as 4/6/8/12-fold Push Button. Integrated BCU. New functions Series 02: Innovative group control with long/extra long operation / Keystroke. New mapping function for convenient function allocation. Extended info display with up to 3 lines and up to 6 measured values. Modern Icons (Icon upload) Slap function with new range of functions. General functions: Large, coloured active display to indicate function and status. Adjustable background colour of the display (white or black). Symbols and plain text adjustable for each button/function. 6 mechanical buttons with finger recess. Up to 12 functions on 2 or 3 levels (2x6 or 3x4 functions). Up to 6 functions without level switching. The buttons can be programmed for 1 or 2 button operation. 1 or 2 button operation for switching, dimming, shutters, values. Short/long button push with 2 objects. RGB status for each button separate controlable from each level. Visualisation of inside/outside temperature and time. Automatic display brightness via light sensor and day/night object. Slap function with additional switch channel. Installation without frame in a Installation box. Dimensions (W x H): 86 mm x 86 mm. Recommended installation height: 1,10 - 1,25 m (as Push Button). No additional power supply required. Integrated bus coupling unit. 3 year warranty.

KNX Central Operation Unit Smart 86 with colour display, Plastic, White glossy finish. With 6 Push Buttons. Integrated BCU. Large, active colour display (automatic brightness adjustment). Four direct operating functions (e.g. present, light, blinds). 20 operating functions via menu/time switch (e.g. dimmer/shutter/switching/send values/scenes/temperature set points). Code lock with 4-6 digits, to lock and unlock the device or alarm activation. Daily/weekly/astronomical time switch (20 channels each with 6 switching times). Holiday function with time period activation. Automatic calculation of public holidays. Comfortable room temperature controller with temp. sensor. Ventilation control (manual or automatic). Visualisation of inside/outside temperature, setpoint and time/date. Visualisation of status information/messages (1 Bit / 14 Byte). 6 status LEDs independently controllable. 6 logic blocks each with 4 inputs. No additional power supply required. Installation in a installation box, Dimensions (W x H): 86 mm x 86 mm. Recommended installation height: 1,60 m. 3 year warranty.
